PNEUMATIC SCALE | ANGELUS Craft Beverage CBR Family: Rotary Counter Pressure Systems
About this machine
About this technology

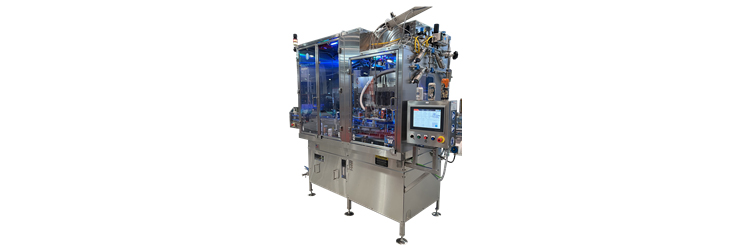

The CBR family of craft beverage canning lines brings rotary counter-pressure filling together with rotary Angelus seaming in a compact footprint, operating at speeds up to 250 CPM. Currently available as a 12/3 (12-head filler, 3-spindle seamer), 16/4 (16-head filler, 4-spindle seamer), or 24/4 (24-head filler, 4-spindle seamer) configuration, the CBR full rotary design enables faster speeds and a smooth, continuous motion transition from filling to seaming, eliminating unnecessary agitation, and reducing Dissolved Oxygen (DO) levels.
Cans are purged of oxygen prior to filling, with configurable purge and snift times to control foaming. Under Cover Gassing (UCG) at the turret lid feed and a bubble breaker positioned ahead of the Angelus seamer serve to keep DO levels to an industry-leading minimum. Achieving the proper Foam on Beer (FOB) is no longer required to maintain low DO thanks to true UCG, thus widening the operating range of the filler and reducing adjustments needed when changing from one product to another.
The CBR family builds upon the success of previous counter-pressure models with the added advantage of a full rotary system. Combining a rotary filling turret with rotary seaming means you can increase the number of cans traveling through the system, maintaining best-in-class Angelus seam integrity without any increase in product agitation. This enables you to eliminate unwanted reductions in carbonation levels seen with other filling methods.
The CBR full rotary design allows for a smaller footprint than other rotary formats and some linear systems. The addition of the rotary seamer allows you to achieve faster speeds in a more compact design, which is great for brewers and others who want to increase production without requiring additional space, often already at a premium.
The CBR system includes quick-change can handling parts and recipe-driven automatic motorized turret height adjustment to accommodate multiple can sizes, as well as an automated clean-in-place (CIP) routine with customizable settings for easy cleaning between product changes. An intuitive HMI for individual fill head volume adjustments simplifies operation.
Contact us today to speak with one of our craft brew experts about the specific requirements of your project. We're happy to assist you.
Product Details
Mechanical Features

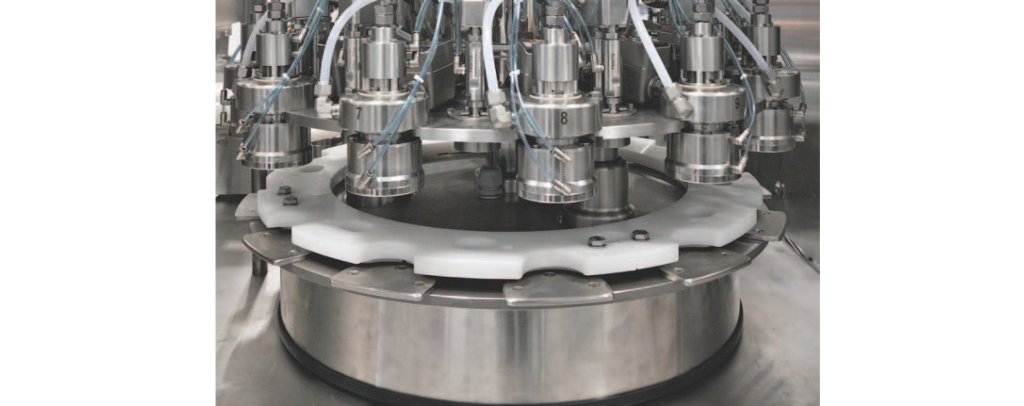

- Twelve-, sixteen-, or twenty four-head rotary counter pressure filling turret coupled with a three- or four-spindle rotary seamer in a compact footprint, rated for up to 250 CPM
- Quick change adjustments for various can height/body diameters, suitable for 200 to 206 can ends with no valve change required, 202 to 300 can body diameter, and 2-3/8” - 8” (60 mm – 203 mm) can height
- Centralized manual grease lubrication bank
- Remote access via BW standard hardware
Filling Features
- True isobarometric filling accomplished with an on-board product filler bowl. ASME (optional CE or CRN) certified to 60 psi/4 bar
- Cans are flushed/purged of oxygen to atmosphere prior to filling, with configurable purge and snift times to control foam
- 316L SST product contact parts
- Magnetic flowmeter measurement, standard
- Recipe-driven automatic motorized turret height adjustment
- Automated CIP routine with CIP cups and customizable settings
- Compatible with widget cans
Seaming Features
- Bubble breaker prior to Angelus seamer to minimize dissolved Oxygen (DO)
- Under Cover Gassing (UCG) turret lid feed to further reduce DO
- Cam-operated driven lower lifters
- Recipe-driven automatic motorized turret height adjustment
- Stainless steel product area and base assembly
- Angelus V-Series tooling
- Horizontal feed-chain between filler and can feed turret
Technical Data
- Rated for speeds of up to up to 250 Containers Per Minute (CPM)
- Twelve, sixteen, or twenty four rotary filling heads paired with a three- or four-spindle rotary seamer
- Up to 4.1 vols / 8.0 g/l CO2 carbonation levels
- Industry-leading controls with HMI includes intuitive interface featuring data logging screen for quality control
- HMI display includes live temperature, pressure and volume feedback
- Product supply tank for tightly controlled pressure, producing consistent, quality fills
- Titanium nitride-coated Angelloy® seaming rolls with ceramic bearings
- Optimized for beverage can - height range 2-3/8" to 8.00" (60 mm - 203 mm)
- Automatic Clean in Place (CIP) routine with CIP cups and customizable settings
- Sanitary 316 stainless steel standard for product contact, with sanitary/hygienic product supply piping and connections
- Protective flange to prevent damage from maladjustments
- Ideal for beverages including beer, cider, seltzer, CSD and more with < 4.1 Vols CO2
- Designed and manufactured at the Pneumatic Scale Angelus headquarters facility in Stow, OH
Packaging Styles
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
