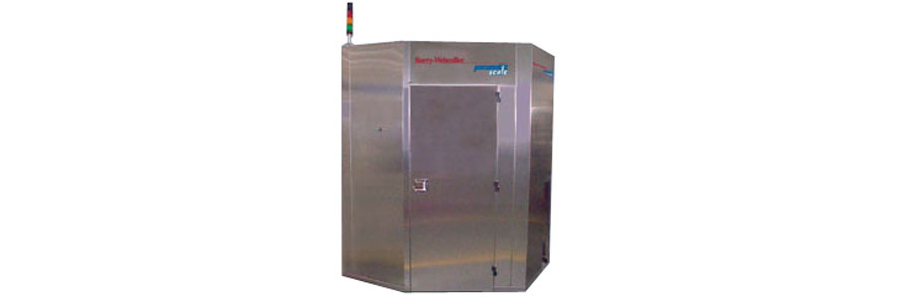

CONTINENTAL/CLOSETECH High Speed Double Seamer 2003, 2006, 2008 HDS
About this machine
About this technology
The 2003, 2006 and 2008 HDS have been designed with the versatility necessary to accommodate the full range of can sizes manufactured in your plant, with the speed capability to match today's needs. Height changeovers may be accomplished in a matter of minutes. This quick-change feature is the result of a concept which provides for the support and driving of all height change-related components directly from the top housing. This unique design eliminates the need for sliding shaft and key fits found in other Double Seamers available today.
Diameter changes can be accomplished in a matter of several hours; with optional quick change features, diameter changes of one hour may be achieved.
Contact us today to speak with one of our Continental/ Closetech experts about the specific requirements of your project. We're happy to assist you.
Product Details
- Maximum speed of 1200 Containers Per Minute (CPM), depending on can size, type, and type of drive
- Closes 208 through 910 high cans with a standard tin line
- Three, six and eight seaming spindles available
- Power-driven can holding chuck assemblies
- Innovative design reduces gearing by as much as 18%
- Simplified modular machine subassemblies for quick, easy maintenance when required
- Fewer seaming stations, so the quantity of tooling and setup time is reduced
- One set of change parts included with the base machine
- Individual 1st and 2nd operation seaming roll shanks allow overlap seaming and full range of can sizes without the need for lever replacement
- Three-screw cover feed design gives optimum separation and control of all end types
- Equipped with solid state covertrip and low coverstack controls
Technical Data
- Seams cans at speeds up to 1200 CPM, depending on can size, type and type of drive
- Seams cans between 2-11/16" - 6-3/16" (68.28 - 157.18 mm) in diameter
- Seams cans between 2-1/2" - 9-5/8" (63.50 - 244.48 mm) high (standard tin line)
- Net weight is between approximately 5,850 lbs (2,647 kg) and 5,950 lbs (2698 kg)
- Maximum height is 90.72" (230.43 cm)
- Width is 54.0" (137.0 cm)
- Basic length is 74.2" (188.5 cm)
Technical Specifications: 2000 HDS
| Technical Details | 2003 3-Spindle | 2006 6-Spindle | 2008 8-Spindle |
| Maximum Speed | 450 CPM | 900 CPM | 1200 CPM |
| Diameter of Cans Handled | 211 - 603 (68.28 - 157.18 mm) * | 202 - 404 (53.98 - 114.3 mm) * | 200 - 300 (50.8 - 76.2 mm) * |
| Height Range of Cans Handled with Standard Tin Line | 208 - 910 (63.50 - 244.48 mm)** | 110 - 800 (41.28 - 203.2 mm) ** | 110 - 800 (41.28 - 203.2 mm) ** |
| Net Weight, Approx. | 5,850 lbs / 2,647 kg | 5,900 lbs / 2,670 kg | 5,950 lbs / 2,968 kg |
| Height Maximum | 90.72" / 230.43 cm | 89.12" / 226.36 cm | 89.12" / 226.36 cm |
| Width | 54.0" / 137.0 cm | 54.0" / 137.0 cm | 54.0" / 137.0 cm |
| Length, Basic | 74.2" /188.5 cm | 74.2" /188.5 cm | 74.2" /188.5 cm |
* With appropriate change parts. Outside this range, consult your sales person.
** Height to .012 may be accommodated with raised tin line option.
