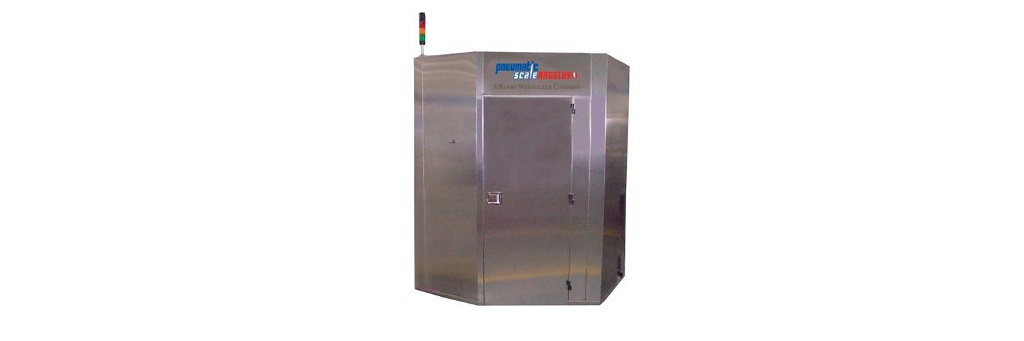

CONTINENTAL / CLOSETECH Rotary Double Seamer 2003, 2004, 2006 RDS
About this machine
About this technology
The 2003, 2004 and 2006 RDS are engineered to combine value, operational efficiency and precision seaming. Closetech Rotary Double Seamers have a high number of parts that are interchangeable from one model to the next, resulting in:
- Lower costs to build the machines because of the large number of common parts
- Shorter lead times, because the machine that meets your exact requirements can be filled from a stock of common parts
- Better prices and faster delivery on parts since so many parts are used on all models
- Lower investments by customers into spare parts inventory since a single set of common emergency spare parts covers 3, 4 and 6 spindle machines
The 2003, 2004 and 2006 RDS will enable you to achieve your current production goals faster and more economically, while also positioning you for future success.
Contact us today to speak with one of our Continental/ Closetech experts about the specific requirements of your project. We're happy to assist you.
Product Details
- Maximum speed of 600 Containers Per Minute (CPM), depending on can size, type, and type of drive
- Closes 110 through 910 high cans with a standard tin line
- Three seaming spindles
- Innovative design reduces gearing by as much as 18%
- 180° can infeed/discharge for easy line layout
- Quickly change seaming spindle speeds to optimize your seams
- Segmented seaming head/spindle and shank assemblies
- Three-screw cover feed gives optimum separation and control of all end types
- All parts affecting can height changes (e.g. cover feed, cover guides, can feed turret) are supported and driven from the top housing, avoiding problems of sliding shaft and key fit alignment
Technical Data
- Seams cans at speeds up to 600 CPM, depending on can size, type and type of drive
- Seams cans between 102 - 701 (68.28 - 179.37 mm) in diameter
- Seams cans between 208 - 910 (63.5 - 244.48 mm) high (standard tin line)
- Net weight is approximately 4,850 lbs (2,200 kg)
- Maximum height is 87.6" (222.5 cm)
- Width is 49.70" (126.3 cm)
- Basic length is 79.50" (201.9 cm)
Technical Specifications: 2000 RDS
| Technical Details | 2003 3-Spindle | 2004 4-Spindle | 2006 6-Spindle |
| Maximum Speed* | 300 CPM | 400 CPM | 600 CPM |
| Diameter of Cans Handled | 211 - 701 (68.28 - 179.37 mm) * | 202 - 408 (53.98 - 114.3 mm) * | 202 - 404 (53.98 - 107.95 mm) * |
| Height Range of Cans Handled with Standard Tin Line | 208 - 910 (63.50 - 244.48 mm)** | 110 - 800 (41.28 - 203.2 mm) ** | 110 - 800 (41.28 - 203.2 mm) ** |
| Net Weight, Approx. | 4,850 lbs / 2,200 kg | 4,900 lbs / 2,222 kg | 5,000 lbs / 2,268 kg |
| Height Maximum | 87.6" / 222.5 cm | 86" / 218.4 cm | 86" / 218.4 cm |
| Width | 49.70" / 126.3 cm | 49.70"/ 126.3 cm | 49.70" / 126.3 cm |
| Length, Basic | 79.50" /201.9 cm | 79.50" /201.9 cm | 79.50" /201.9 cm |
* Speed is dependent on can size, type, and type of drive.
** With appropriate change parts. Outside this range, consult your sales person.
